Basic Features

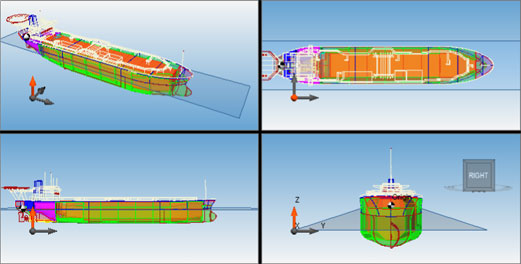

- CyberMaster3D is a new generation Loading Software with enriched loading/operating features and based on 3D technology.
- CyberMaster3D confirms to the IACS requirements of Type 1-4 software.
- Advanced computation techniques enable faster and live computation.
- The real time tank filling enables the operator to easily understand the vessel behaviour.
- Works on all windows-based Desktops.

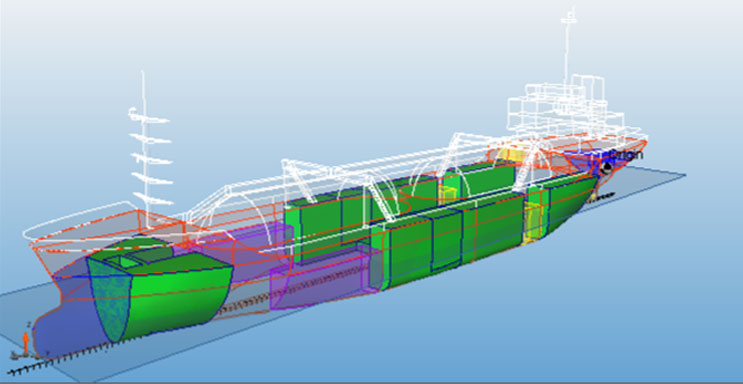

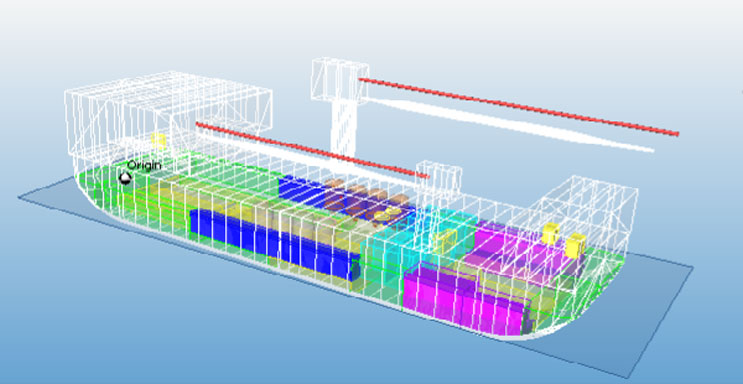

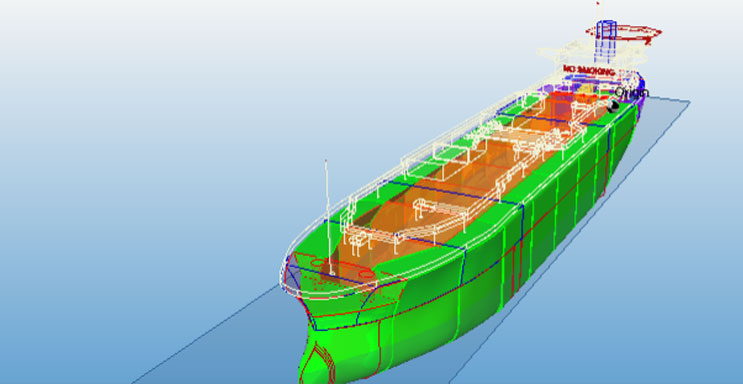

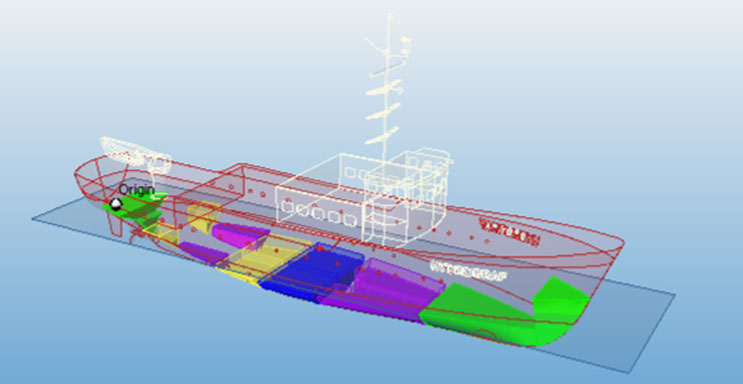

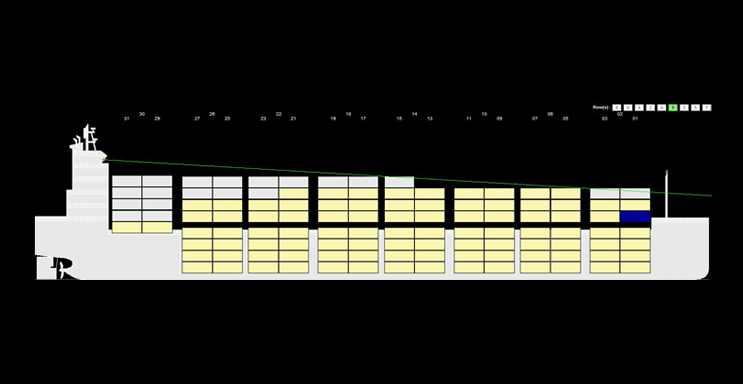

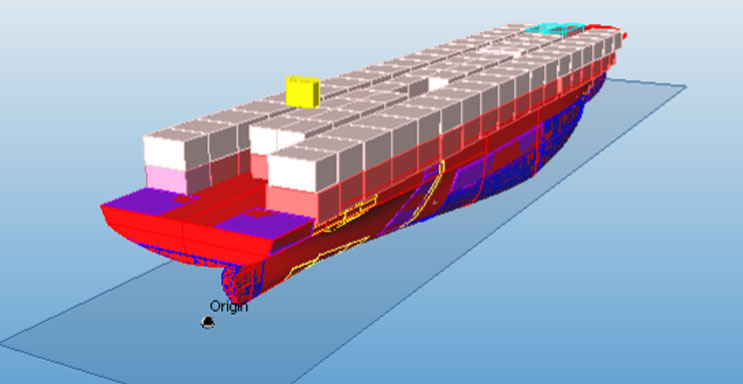

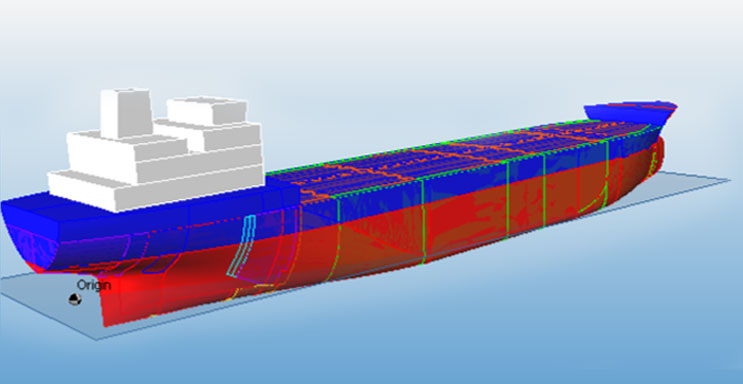

- Available for several types of Seagoing Vessels and Offshore Assets
Basic Functions
CyberMaster3D will perform the following basic functions

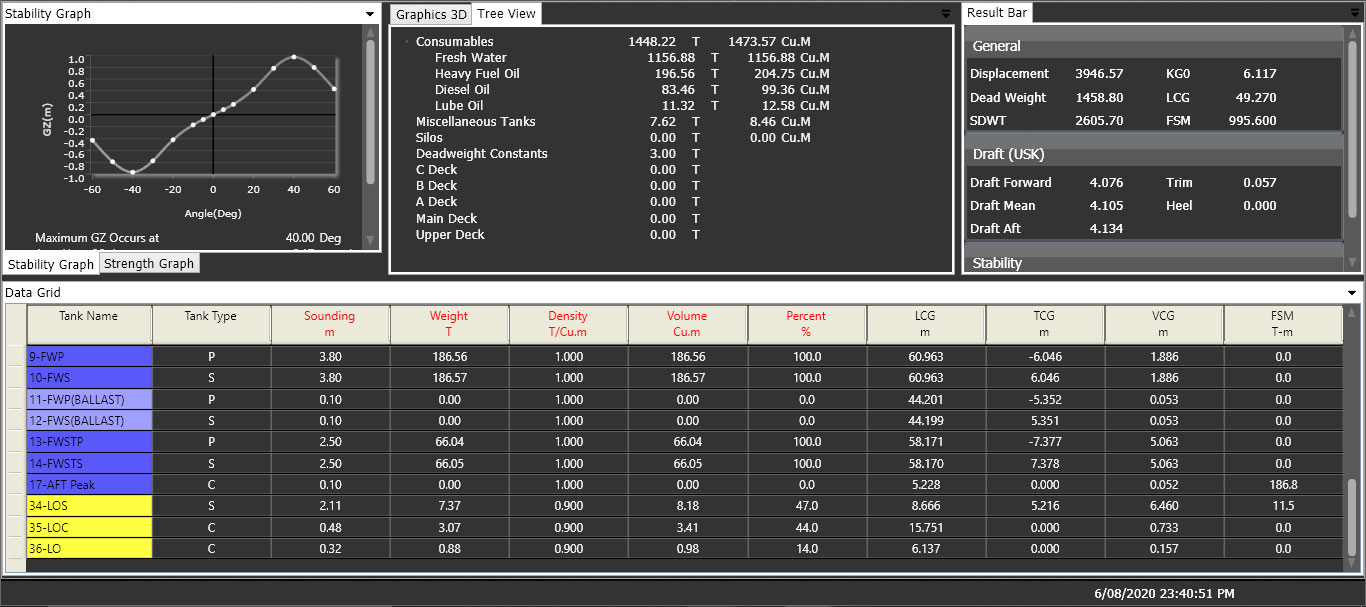

Loading Conditions & Intact Stability Computation
- Preparation of Loading Conditions via percentage filling, volume, weight or sounding/ullage depth.

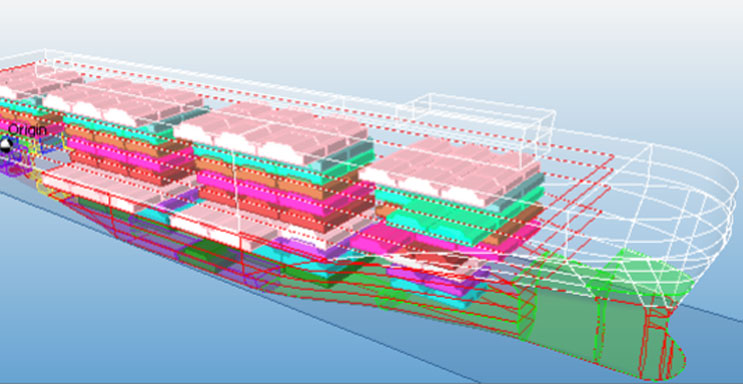

- Use of accurate tank soundings from 3-D models.
- Computation of Draft, Trim & Heel
- Displacement & Deadweight Calculation
- GM & GoM Calculation
- Intact Stability computation as per I.S Code 2008 & compliance comparison
Longitudinal Strength Computation
- SF/BM Computations
- Warnings for violation.
- Graphical Representation throughout length of vessel.
- Option to input allowable values for SF & BM as per service restriction.
- Printable Reports with SF/BM values against Permissible allowable.
- Option to generate weight and buoyancy curve for any loading condition.
Warnings, Checks & Error Prevention for Exceeding the followings
- Loadline Draft and Excessive Trim
- Maximum permissible VCG exceedance
- Stability criteria violation
- Propeller Immersion
- Minimum Forward Draft
- Permissible Still water Bending moment and Shear force
- Net Tank Top strength
- Audio alarms for criteria violations
- User-defined constraints of Draft, Trim checks
- Special Constraints such as Minimum Ballast Draft, Propeller Immersion
